high speed steel inlay polar paper cutting machine guillotine knife

Large Image : high speed steel inlay polar paper cutting machine guillotine knife

Product Details:

Place of Origin:	Maanshan,China.
Brand Name:	Sinostar
Certification:	ISO9001:2000
Model Number:	polar paper cutting knife

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$65-150 /piece
Packaging Details:	Export standard packing with wooden case
Delivery Time:	25-30 days
Payment Terms:	T/T, L/C, or Paypal
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Material:	HSS, SKD11, Tungsten Carbide, Etc.	Dimension:	500x115x10mm
Parallelism Tolerances:	Within 0.003mm	Hardness:	HRC40~68 Degree
Merits:	High Precession,Good Wear-resistance	Application:	Paper Cutting.

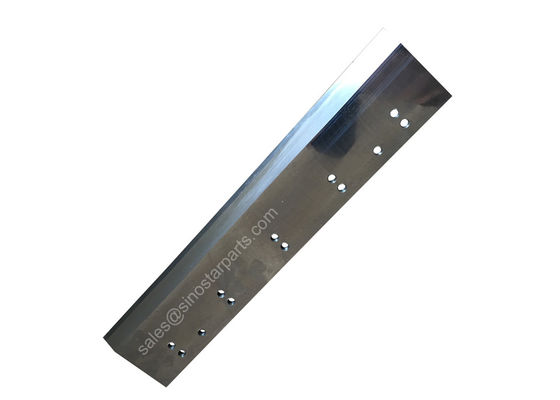

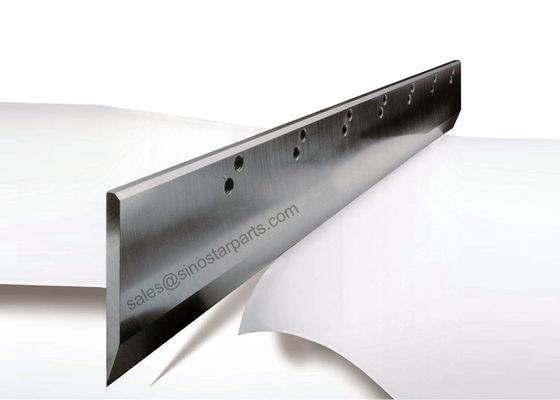

High speed steel inlay polar paper cutting machine guillotine knife

high speed steel inlay polar paper cutting machine guillotine knife 0

high speed steel inlay polar paper cutting machine guillotine knife 1

high speed steel inlay polar paper cutting machine guillotine knife 2

Dimension sheet

polar paper cutting knife
Machine type	Size of knives	Net weight per piece
polar58	715x95x9.7mm	5.2kgs
polar66	805x95x9.7mm	5.8kgs
polar72	868x104x9.7mm	6.9kgs
polar76	925x110x9.7mm	7.8kgs
polar78	960x110x11.7mm	9.7kgs
polar80	990x107x9.7mm	8.1kgs
polar82	990x107x11.7mm	10kgs
polar90	1080x115x11.7mm	11.4kgs
polar92	1095x115x11.7mm	11.6kgs
polar105	1325x120x11.95mm	15kgs
polar115	1390x160x13.75mm	24kgs
polar137	1605x160x13.75mm	27.8kgs
polar155	1785x160x13.75mm	30.85kgs

According to your application ,we will recommend you the best material and hardness.

Optional Materials :9CrSi , 6CrW2Si , LD , D2 , Cr12MoV , H13 , G1, G2 ,G3 and etc .We developed some high alloy steel ,like G1,G2,G3 etc. They are new materials developed independently by our company and excellent in high intensity, high hardness , high wear resistance , high toughness and so on.They can be used in both cold and hot shearing ,the life is 2-3 times longer than other blades made of normal materials.

Hardness : If hardness is high , when the blades meet higher tensile strength steel ,it is easy to crack. If the hardness is low , then the wear resistance is not good ,that means work life is shorter .

Features and Benefits

Trying our best to do anythings just for the first time.
Excellent cutting quality,stable and reliable cutting performance.
High precision,high intensity.
Excellent hardness,small thermal deformation.
Lower yearly knife consumption costs.
Excellent service and Technical supports.

Main applications of our blades and knives

Paper industry.
Wood industry.
Metal industry.
Textile industry.
Plastic,rubber,film,foil,fiber glass cutting.

Key Performance Indicator

Suite material selection.
Good price and offering.
Advance cutting technology.
Production cost optimized.
Stock & Inventory efficiency.

Standard Revolution of Knives

Life time of knives.
Property cuttings.
Product quality.
Process check and survey reports.
Maintenance procedure.

Before using knives

Check the existing package.
Check the number, specification, operation and trouble-shooting.
Understanding of our technical & products.

Packing way

A. Inside packing: Applied with anti-rust oil and then packed in plastic bag.

B. Outside packing: Packed in plywood case.

Our Commitments

Good technical & knowhow support.
Fast & Flexible responsibility.
Business partnership together.
Better engineering get the best proven.

For more details, please find us as below

high speed steel inlay polar paper cutting machine guillotine knife 3
