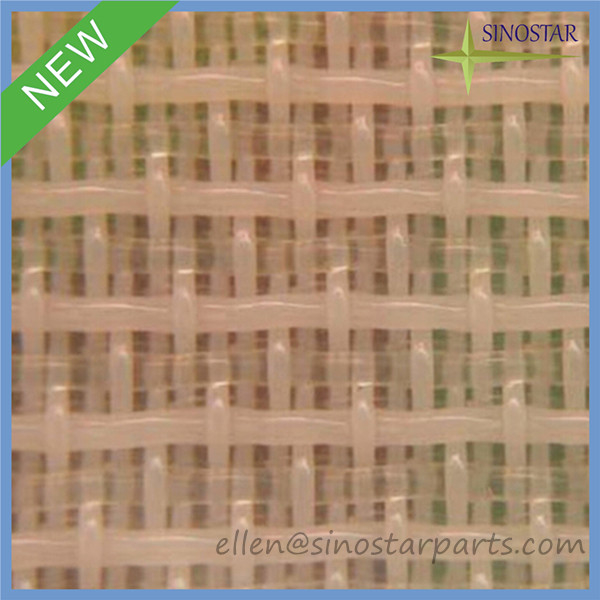

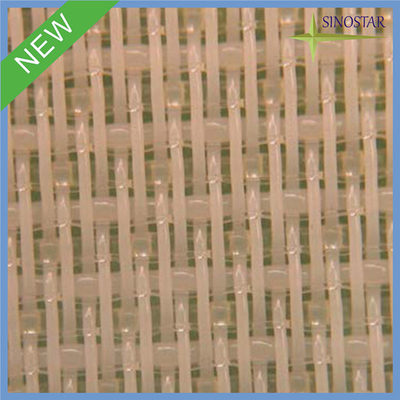

paper machine clothing,1.5 layer,10-shed,polyester forming fabrics

paper machine clothing,1.5 layer,10-shed,polyester forming fabrics

    • paper machine clothing,1.5 layer,10-shed,polyester forming fabrics
    • paper machine clothing,1.5 layer,10-shed,polyester forming fabrics
  • paper machine clothing,1.5 layer,10-shed,polyester forming fabrics

    Product Details:

    Place of Origin: Anhui,China (forming fabircs)
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS.
    Model Number: polyester forming fabric

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: 10-30 usd / square meter
    Packaging Details: plastic bag inside and wooden crate outside
    Delivery Time: 25 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 8000 square meters per month
    Contact Now
    Detailed Product Description
    Material: 100% Polyester Feature: Acid And Alkali Resistance
    Technic: Woven Application: Paper Making Industry
    Supply Type: Make-to-order OEM & ODM: Acceptable
    Position: Paper Processing Forming Section

    A sheet of paper begins in the forming section, where a mixture of 99% water and 1% cellulose fiber is

    introduced evenly across a forming fabric, which acts as both a sheet conveyor and a dewatering device.

    It is here that the paper sheet is formed and the initial water removal occurs. As the fabric moves, water

    drains through it, while the fibers and fillers that form the sheet remain on top. Today, forming fabrics have

    an average operating life of 45 to 60 days. Multilayer technology offered by Maanshan Sinostar is the

    standard today on world-class high-speed machines.

    Paper machine forming fabrics are designed to retain as much fiber and other furnish components as possible

    while allowing water to drain through them as quickly as possible. These fabrics are typically produced from

    monofilament strands or yarns that are woven together in a pattern that can be classified by their fabric style

    (or weave);mesh, count, and diameter; surface topography; and air permeability. This module discusses how

    each of these characteristics affect final sheet quality.

    Thank you,our customers,for your support of and interest in Maanshan Sinostar Industry Co.,Ltd.

    paper machine clothing,1.5 layer,10-shed,polyester forming fabrics

    paper machine clothing,1.5 layer,10-shed,polyester forming fabrics

    paper machine clothing,1.5 layer,10-shed,polyester forming fabrics

    Paper Machine Single Layer Polyester Forming Fabrics Series Products Parameters

    Weaving series

    and species

    Model of

    Fabric

    Thread

    Diameter

    (mm)

    Density

    (thread/cm)

    Strength

    (N/cm)

    Thickness

    (mm)

    Air

    Permeation

    m3m2/h

    Max.Elongation

    at 50N/cm

    Warp Weft Warp Weft surface jointing

    4-shed single

    layer fabric

    cxw25254 0.22 0.25 27-28 22-23 >600 >400 0.52 8000 <0.6%
    cxw25274-1 0.22 0.27 27-28 18-19 >600 >400 0.54 7800 <0.6%
    cxw25274-2 0.22 0.27 27-28 19.5-20.5 >600 >400 0.54 7500 <0.6%
    cxw27234-1 0.2 0.23 30-31 23.5-24.5 >600 >400 0.48 7500 <0.6%
    cxw27234-2 0.2 0.23 30-31 24.5-25.5 >600 >400 0.48 7000 <0.6%
    cxw27254 0.2 0.25 29.5-30.5 21.5-22.5 >600 >400 0.5 8000 <0.6%
    cxw27254-1 0.2 0.25 29.5-30.5 22.5-23.5 >600 >400 0.5 7500 <0.6%
    cxw27254-2 0.2 0.25 29.5-30.5 23.5-24.5 >600 >400 0.5 7000 <0.6%
    cxw27264 0.2 0.26 29.5-30.5 20.5-21.5 >600 >400 0.5 7000 <0.6%
    cxw27274 0.2 0.27 29.5-30.5 21-22 >600 >400 0.52 7800 <0.6%
    cxw27274-1 0.2 0.27 29.5-30.5 22-23 >600 >400 0.52 7300 <0.6%
    cxw28224-1 0.2 0.22 30.5-31.5 19-20 >600 >400 0.44 8500 <0.7%
    cxw28224-2 0.2 0.22 30.5-31.5 23-24 >600 >400 0.44 7500 <0.7%
    cxw29234 0.2 0.23 31-32 21-22 >600 >400 0.48 7500 <0.7%
    cxw29254 0.2 0.25 31-32 20.5-21.5 >600 >400 0.5 7000 <0.7%
    cxw31204-1 0.2 0.2 34.5-35.5 27.5-28.5 >550 >350 0.42 7500 <0.7%
    cxw31204-2 0.18 0.2 34.5-35.5 29-30 >550 >350 0.42 7000 <0.7%
    cxw31204-3 0.18 0.2 34.5-35.5 30-31 >550 >350 0.42 6500 <0.7%

    5-shed single

    layer fabric

    cxw28225-1 0.18 0.22 30.5-31.5 26-27 >550 >400 0.51 7500 <0.7%
    cxw28225-2 0.18 0.22 31.5-32.5 27-28 >550 >400 0.52 7300 <0.7%
    cxw31205-1 0.18 0.2 34-35 31-32 >550 >400 0.45 7200 <0.7%
    cxw31205-2 0.18 0.2 34-35 33-34 >550 >400 0.45 7000 <0.7%

    8-shed single

    layer fabric

    cxw25358-1 0.22 0.35 27.5-28.5 18.5-19.5 >650 >400 0.87 9000 <0.55%
    cxw25358-2 0.22 0.35 27.5-28.5 19.5-20.5 >650 >400 0.87 8500 <0.55%
    cxw27358-1 0.2 0.35 29.5-30.5 19.5-20.5 >650 >400 0.85 8500 <0.55%
    cxw27358-2 0.2 0.35 29.5-30.5 20.5-21.5 >650 >400 0.85 8000 <0.55%
