16-shed two and a half layer polyester forming fabric (cxw602516-2)

16-shed two and a half layer polyester forming fabric (cxw602516-2)

    • 16-shed two and a half layer polyester forming fabric (cxw602516-2)
    • 16-shed two and a half layer polyester forming fabric (cxw602516-2)
  • 16-shed two and a half layer polyester forming fabric (cxw602516-2)

    Product Details:

    Place of Origin: Anhui,China (forming fabrics)
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS.
    Model Number: forming fabrics:602516-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: 10-27 usd / square meters
    Packaging Details: plastic bag inside and wooden crate outside
    Delivery Time: 25 days according to your QTY
    Payment Terms: T/T or L/C
    Supply Ability: 3000 square meters
    Contact Now
    Detailed Product Description
    Material: 100% Polyester OEM & ODM: Capability

    Model of fabric:cxw602516-2

    Structure:double and a half layer forming fabric

    Warp diameter:0.17mm,

    Weft diameter:0.13mm,0.18mm /0.25mm(PET),0.25mm(PA66)

    Warp density:68 thread/cm       Weft density:61 thread/cm

    Breaking strength:≥960N/cm  Jointing strength:≥650N/cm

    Air permeability (m3/m2h):263CFM(4200m3/m2h )


    Max. Elongation at 50N/cm:<0.45%

    Paper making forming fabrics

    According to the weaving, polyester forming fabric can be divided into 4-shed, 5-shed, 7-shed, 8-shed, 16-shed,

    24-shed etc. For the category, it can be divided into single layer fabric, double layer fabric, two and a half layer fabric

    and three-layer fabric.


    4-shed single layer forming fabrics is the standard type of polyester forming fabrics in making paper.It is used for producing

    culture paper, printing paper, packing paper,etc.

    5-shed single layer fabrics is good at making healthy, culture packing papers etc.

    8-shed single layer forming fabrics is the most wear-resisting one in the single layer screen, which have long performance life,

    but mesh print is relatively deep,it is mainly used for copying the papermaking.

    7-shed double layer forming fabric is suitable for quality printing paper and tissue paper etc.

    8-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, and inner pulp for the

    board paper etc.

    8-shed,16-shed double layer fabrics is suitable for quality printing paper, tissue paper and the surface pulp, inner pulp

    and bade pulp of the board paper etc.
    Mufti-shed three-layer forming fabric is suitable for making quality printing paper, paper and cigarette etc.

    Company Introduction:

    Maanshan Sinostar Industry Co.,Ltd is a supplier of filter fabrics for solid-liquid separation and

    dryer fabrics used in the paper industry. They are produced in a plant inMaanshan, which has more

    than 10 years worth of experience with the production of paper machine clothing. We use only the best

    plastic yarns from reliable suppliers and guarantee the highest quality of our products.

    We aim at supply in our customers with a suitable fabric and achieving the best possible results according to

    their demands. In order to do that, we want to learn about their goals and to understand the technological

    processes for which our fabrics will be used. We also provide continuous technical support and service.

    We offer dryer fabrics for all paper grades including special fabrics, which are resistant to hydrolysis and

    stickies for the range of air permeability from 80 to 1,000 CFM.

    Our filter fabrics can be used in a wide variety of applications for the solid-liquid separation, e.g.dewatering of

    municipal or industrial sludge in belt filter presses or gravity thickeners, filtration in horizontal vacuum

    filters, thickening in drum filters, conveyor belts, process belts in various industries,etc.

    We can also produce fabrics according to customers’ specifications.

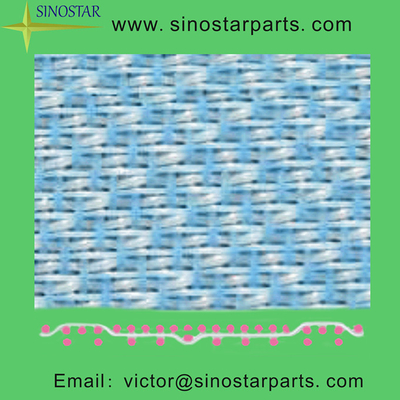

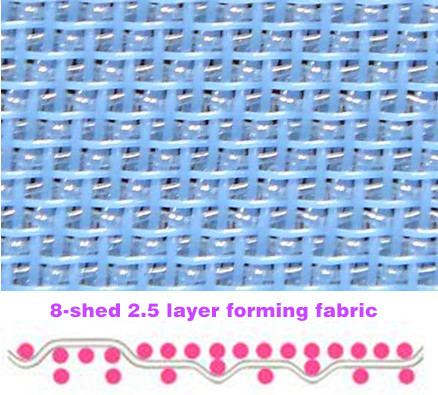

    Double and a half layer forming fabric pictures for reference as below:

    16-shed two and a half layer polyester forming fabric (cxw602516-2)

    16-shed two and a half layer polyester forming fabric (cxw602516-2)


    16-shed two and a half layer polyester forming fabric (cxw602516-2)
