|Place of Origin:||Maanshan forming fabric|
|Model Number:||forming fabric:563520-2|
|Minimum Order Quantity:||100 square meters|
|Price:||25-50 usd / square meter|
|Packaging Details:||plastic bag inside and wooden crate outside|
|Delivery Time:||25 days for ready goods|
|Payment Terms:||T/T or L/C|
|Supply Ability:||8000 square meters per month|

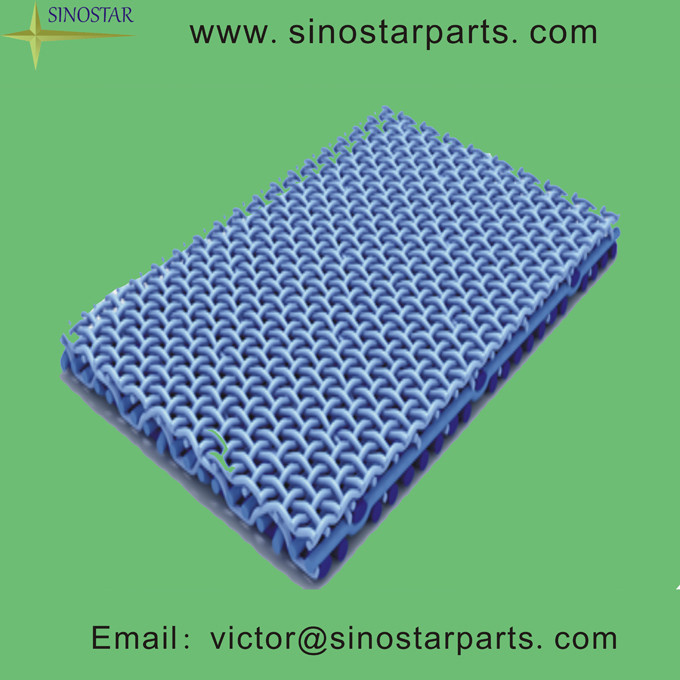

three-layer polyester forming fabrics (cxw563520-2)
Structure:Multilayer composite forming fabric
Model of fabric:563520-2
Top warp diameter:0.15mm Bottom warp diameter:0.20mm
Warp density:66-67 thread/cm Weft density:55-56 thread/cm
Breaking strength:≥1000N/cm Jointing strength:≥600N/cm
Air permeability (m3/m2h):4000m3/m2h
Thickness:1.08mm Max. Elongation at 50N/cm:<0.65%

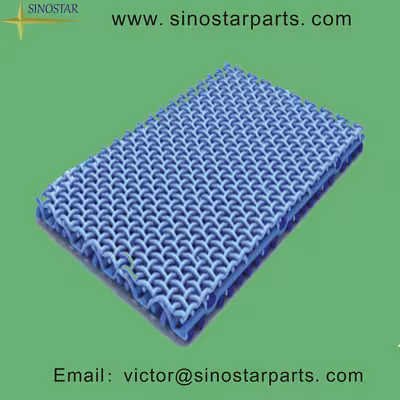

vacuum forming fabric specifications
Paper machine forming fabrics / screen
Strict quality control
Professional design team
Paper machine forming fabrics are designed to retain as much fiber and other furnish components as possible
while allowing water to drain through them as quickly as possible. These fabrics are typically produced from
monofilament strands or yarns that are woven together in a pattern that can be classified by their fabric style
(or weave);mesh, count, and diameter; surface topography; and air permeability. This module discusses how
each of these characteristics affect final sheet quality.
A sheet of paper begins in the forming section, where a mixture of 99% water and 1% cellulose fiber is
introduced evenly across a forming fabric, which acts as both a sheet conveyor and a dewatering device.
It is here that the paper sheet is formed and the initial water removal occurs. As the fabric moves, water
drains through it, while the fibers and fillers that form the sheet remain on top. Today, forming fabrics have
an average operating life of 45 to 60 days. Multilayer technology offered by Maanshan Sinostar is the
standard today on world-class high-speed machines.
Polyester Forming Fabrics / Screen Features:
1.High quality monofilament material imported form Germany,
2.Polyamide monofilament is added in the weft, On the machine side of Polyester Vacuum Forming Fabric.
3.Acid-resistant, wear-resistant, alkali-resistant,non-toxic, high temperature (in the 180-degree can be a long time operation),while net body smooth,tensile strong,good ventilation,running smoothly,
no seam marks,no static charge,wide adaptability,and longer working life.
Polyester Forming Fabrics / Screen Application:
4-shed single layer polyester forming fabric/ Paper machine clothings is suitable for making culture,
writing printing and packing papers etc.
5-shed single layer polyester forming fabric / Paper machine clothings is suitable for making toilet paper,
printing and packing papers etc.Especailly,in Iran,it is used to make Kraft paper,corrugating paper,etc.
8-shed single layer polyester forming fabric / Paper machine clothings is suitable for making high basic
weight paper and packing papers.such as kraft paper,flutting paper,corrugating paper and others.
1.5 layer polyester forming fabric /Paper machine clothings is used widely to make writing printing paper,
Kraft paper,corrugating paper,etc.
8-shed,16-shed double and a half layer ones is suitable for quality printing paper, tissue paper and surface
pulp, inner pulp and base pulp of the board paper.
Three layer multi-shed forming fabric,SSB wire,is suitable for making quality printing paper.good adptability
on high speed of paper machine.
Our product range:
Maanshan Sinostar Industry Co.,Ltd is a professional industrial and trading company. We are specialized in
all kinds of paper proceessing machinery parts:
1).Paper machine clothings(PMC) including:
Polyester forming fabrics ,dryer screens, spiral dryer fabrics,sludge dewatering mesh,pulp washing mesh,
press felt, polyester screen printing fabrics, stainless steel wire mesh,etc.
2).Pulping equipments including:
High density cleaner,low density cleaner,Refiner plates,refiner discs,pressure screen baskets,screen plates,etc.
3).Industrial blades including:
Doctor blade,paper cutting knives,shearing blades,slitting knives,cutting saw blades,round blades,etc.
4).Other paper machinery components including:
Shaft sleeve,Shatter jet,Bronze plain bearing,etc.
