| Place of Origin: | China sludge belt |
| Brand Name: | Sinostar |
| Certification: | ISO9001:2000,SGS,CE. |
| Model Number: | sludge dewatering belt |
| Minimum Order Quantity: | 50 square meters |
|---|---|
| Price: | 15 usd / square meter |
| Packaging Details: | Plastic film inside and wooden case outside |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 8000 square meters |
| Material: | 100% PET | Type: | Filter Fabric |
|---|---|---|---|
| Supply: | Make-to-order | Application: | Paper,mine Industry |

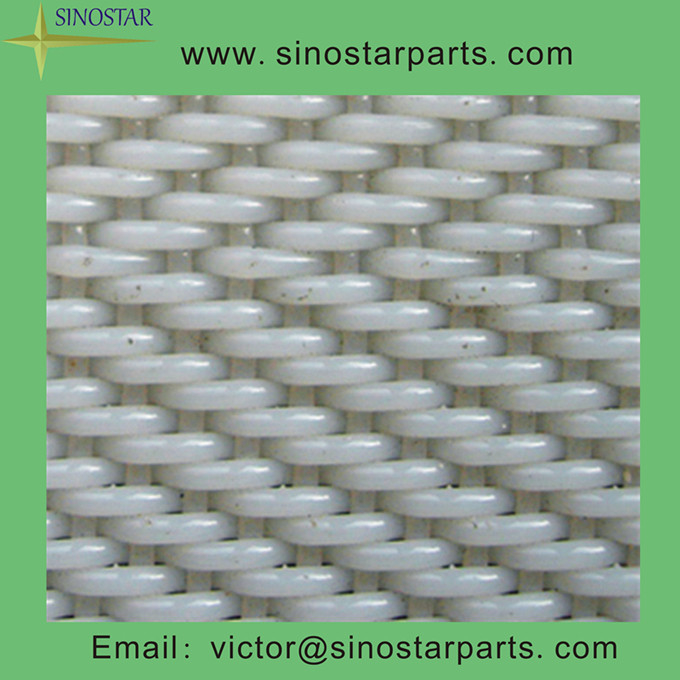

Sludge Dehydration Fabrics
Sludge dewatering fabric is sepcially designed for sludge dewatering process.it has the better air
permeability,as the special design structure,the sludge can be stripped from fabrics easily.then
the fabrics can be washing easily and extend the using lifetime.
Sludge Dehydration fabrics are mainly used for sludge dehydration in sewage treatment plant.
which have the characteristics of good water permeation,air permeability and non-revealed sludge,
acid and alkali resisting,heat resistance(180degree).Because of their designing structure,the sludge
can be peeled off easily after pigeonhole filter,so the screen are easily cleaned and have a long working
time.therefore they are designed specially for sludge dehydration.
|
Model of Fabric |
Thread Diameter (mm) |
Density (thread/cm) |
Intensity (N/cm) |
water permeation S/5L |
Weight Kg/m2 |
Thickness (mm) |
Air permeation m3/m2h |
|||
| warp | weft | warp | weft | surface | jointing | |||||
| 24708 | 0.05 | 0.70 | 24 | 9 | 2000 | 900 | 56.4 | 1.23 | 1.9 | 6130 |
| 27708 | 0.05 | 0.70 | 28 | 8.5 | 2100 | 900 | 63 | 1.53 | 2.21 | 4120 |
| 22903 | 0.05 | 0.90 | 23 | 5.5 | 2000 | 900 | 48 | 1.40 | 1.90 | 6800 |
| 16903 | 0.7 | 0.9 | 17 | 4.5 | 2200 | 900 | 38.6 | 1.7 | 2.0 | 7920 |
| 121103 | 0.9 | 1.1 | 12.5 | 3.8 | 3600 | 900 | 32.4 | 1.6 | 2.6 | 8610 |
| 26808 | 0.05 | 0.8 | 27 | 8.5 | 2100 | 900 | 60.3 | 1.54 | 2.2 | 5120 |
