plain woven polyester forming screen blue mesh

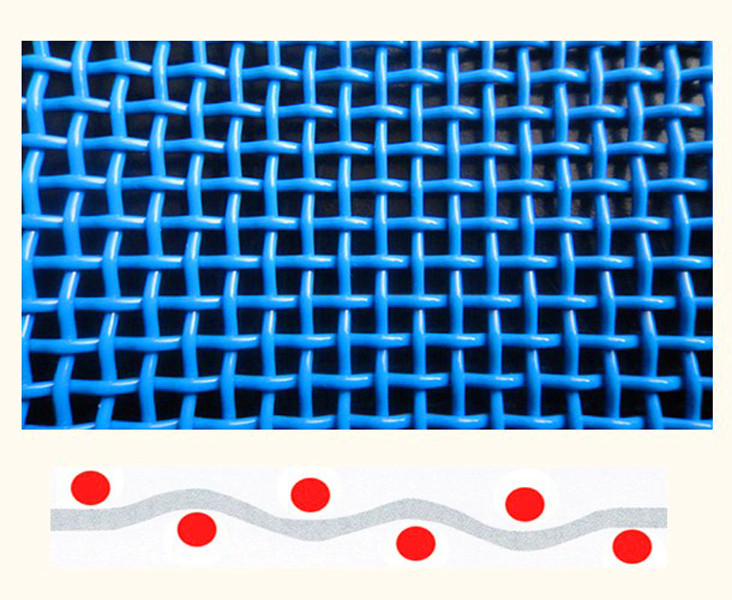

Large Image : plain woven polyester forming screen blue mesh

Product Details:

Place of Origin:	China
Brand Name:	Sino Star
Certification:	ISO9001:2000,SGS.
Model Number:	polyester forming fabric

Payment & Shipping Terms:

Minimum Order Quantity:	100 square meters
Price:	12.5 usd / square meter
Packaging Details:	plastic bag inside and wooden crate outside
Delivery Time:	10-12 days according to your QTY
Payment Terms:	T/T or L/C
Supply Ability:	2000 square meters per month

Contact Now

Detailed Product Description

Plain Woven Polyester Mesh Series

Two-shed and three-shed plain woven mesh are mainly used in making paper pulp, packing paper, fiber paper and other special wire mesh products.

Series	Fabric Model	Thread Diameter mm		Density (pieces/cm)		Strength (N/cm)			Weight kg/m2	Thick- ness/mm	Air Perme-ation 3/m2h
Series	Fabric Model	Warp	Weft	Warp	Weft	MeshSurface	InsertingPlace	Spiral Conne-cting Ring	Weight kg/m2	Thick- ness/mm	Air Perme-ation 3/m2h
Two-Shed PlainWoven Mesh	07603	0.70	0.70	8	7	1600	900	600	0.77	1.3	11000
	09451	0.5	0.5	9	9	1600	850	600	0.45	0.88	16000
	12502	0.50	0.50	13.5	8.5	1800	900	600	0.63	0.95	6500
Three-Shed lainWoven Mesh	108603	0.50	0.60	10	9	1600	900	650	0.59	1.15	14000
	106702	0.70	0.80	8	8	1600	900	650	0.80	1.35	10000
	106353	0.35	0.35	17	15	1200	750	600	0.31	0.60	12100
	120403	0.30	0.40	22	14.5	1200	750	600	0.35	0.70	13500
