Place of Origin: | Anhui, China. |
Brand Name: | Sinostar |
Certification: | ISO, CE |
Model Number: | Dr blade-011 |
Minimum Order Quantity: | 1 box |
---|---|
Price: | $65 |
Packaging Details: | plastic box, wooden case. |
Delivery Time: | 15 days after payment. |
Payment Terms: | 100% T/T, Paypal or West Union. |
Supply Ability: | 500 boxes per month. |
Type: | Doctor Blade | Use: | For Komori Printer |
---|---|---|---|
Printing Type: | Screen Printing Machine | Doctor Blade Material: | Carbon Steel |
Doctor Blade Width: | 50mm | Doctor Blade Lamella Edge Width: | 1.4mm |
Doctor Blade Thickness: | 0.20mm | Doctor Blade Lamella Thickness: | 0.10mm |
Doctor Blade Length: | 100m Per Box | Edge Type: | Single Side Edge |
Application: | Gravure Printing Machine | Machine Speed: | <250m/m |
Shape Of Blade Edge: | Lamella Edge |
50x0.20mm, 1.4x0.10mm, carbon steel gravure printing doctor blade
Material | Carbon steel,stainless steel |
Printing machine type | Flexo and Gravure printing machine |
Machine speed | High speed / Medium speed / Low speed |
Doctor blade width | 10 / 22 / 30 / 35 / 40 / 50 / 60mm |
Doctor blade width tolerance | ± 0.100mm |
Doctor blade lamella edge width | 1.3 / 1.4mm |
Doctor blade lamella edge width tolerance | ±0.025mm |
Doctor blade thickness | 0.15 / 0.20mm |
Doctor blade thickness tolerance | ±0.005mm |
Doctor blade lamella edge thickness | 0.065 / 0.07 / 0.075 / 0.10mm |
Shape of doctor blade edge | Lamella edge, Bevel edge, Round edge. |
Doctor blade lamella edge thickness tolerance | ±0.003mm |
Doctor blade hardness | HV580-620 |
Doctor blade tensile strength | 1950-2150Pa(1860N/mm2) |
Doctor blade surface | Bright polished |
Straightness maximum deviation | 0.5mm/3.0m |
Contact edge roughness | Rao.10 ±0.05um |
Packaging | 100m/box |
Features and Benefits
Applications
Doctor blade is widely used in gravure, flexography, coating and printing areas. It’s suitable for the speed more than 130m middle high-speed machine.
Doctor blades show
Doctor blades production process

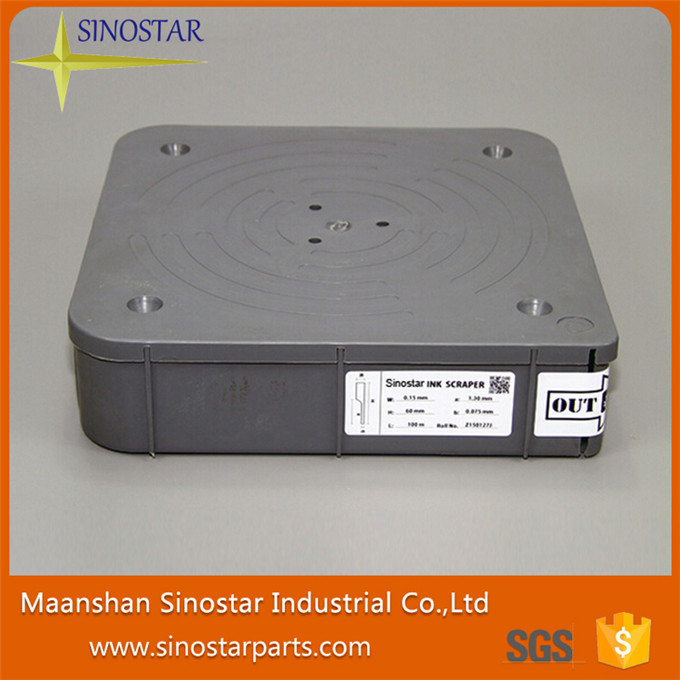

Packaging of doctor blades
Blades are available in pre-cut sizes of any length or in coils of 50m,100m and 200m.
Plastic box inside,and wooden case outside.
Why choose us?
A).Experienced doctor blade product supplier.
B).Professional design team and sales department for your services.
C).Stable quality:come from good materials and technics.
D).Low price: not cheapest but the lowest at the same quality.
E).Good service: satisfactory service before and after sale.
