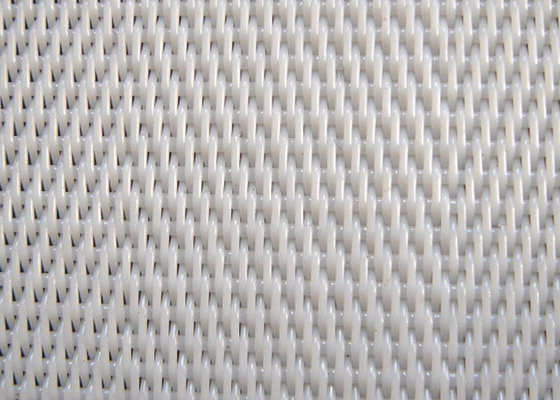

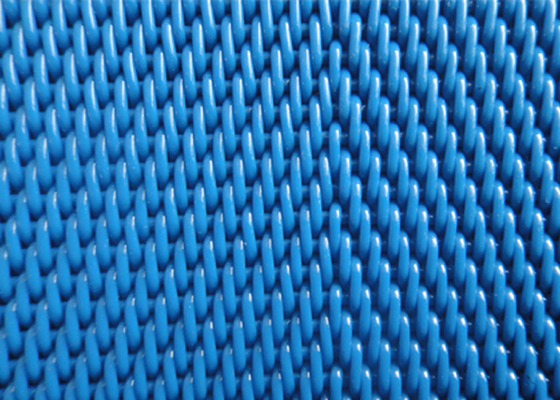

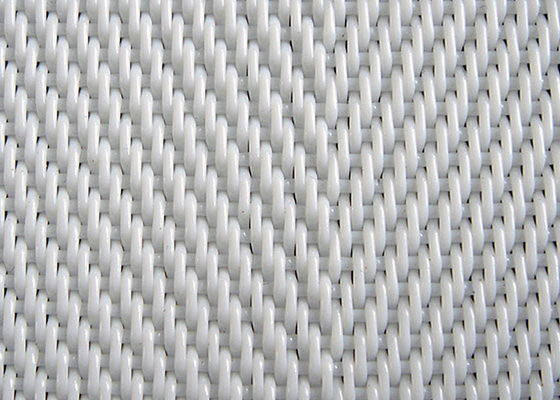

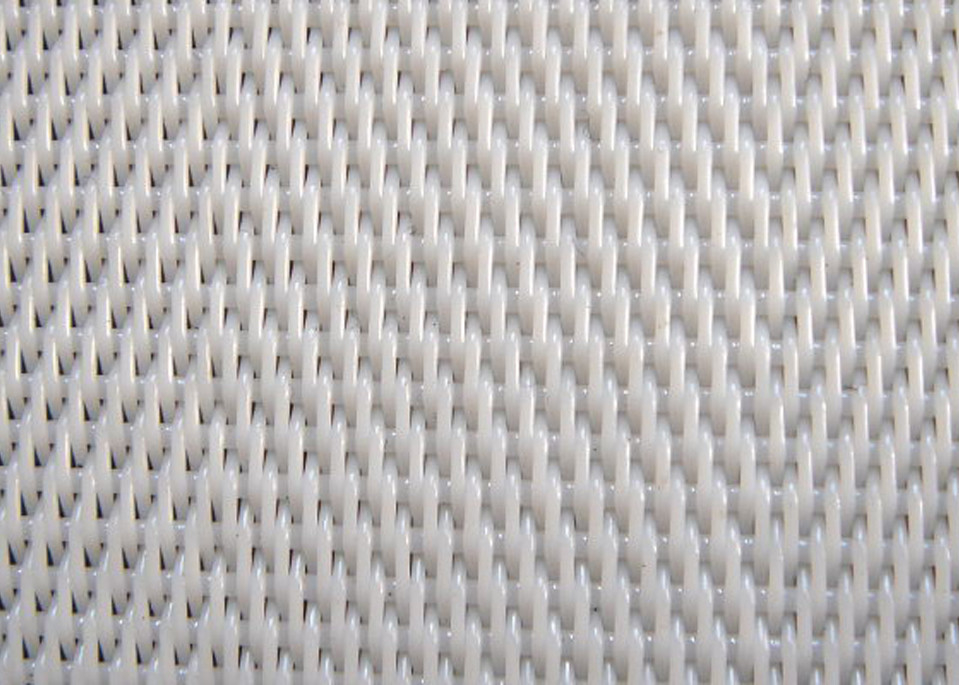

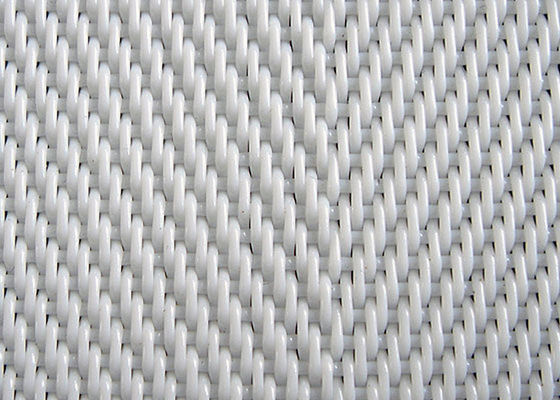

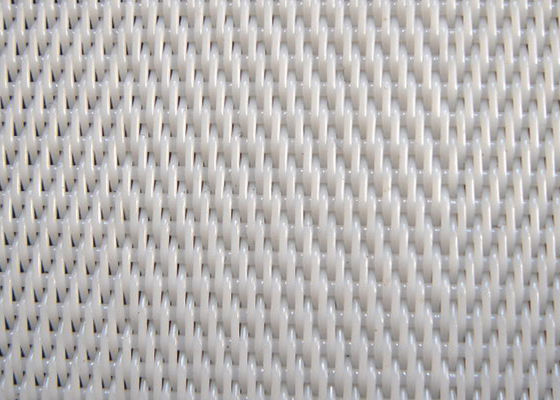

vacuum filter press polyester sludge dewatering conveyor belt

Large Image : vacuum filter press polyester sludge dewatering conveyor belt

Product Details:

Place of Origin:	Anhui, China.
Brand Name:	Sinostar
Certification:	ISO9001:2000,SGS,CE.
Model Number:	sludge dewatering conveyor belt

Payment & Shipping Terms:

Minimum Order Quantity:	50 square meters
Price:	USD 15-24 square meter
Packaging Details:	Plastic film inside and wooden case outside
Delivery Time:	15-20 work days
Payment Terms:	T/T or L/C, Western Union
Supply Ability:	8000 square meters per month

Contact Now

Detailed Product Description

Material:	100% PET, Polyester.	Warp Diameter:	0.7mm
Weft Diameter:	0.9mm	Warp Density (thread/cm):	17
Weft Density (thread/cm):	4.5	Thickness:	2.0 Mm
Seam Type:	Steel Clip	Application:	Sludge Dewatering

Vacuum filter press polyester sludge dewatering conveyor belt

vacuum filter press polyester sludge dewatering conveyor belt 0

vacuum filter press polyester sludge dewatering conveyor belt 1

Features

Good water permeability
High air permeability
Non-revealed sludge
Competitive price

Using

Sludge dewatering fabric is mainly used for sludge de hydration in sewage treatment factories.They have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting, alkali-resisting, heat resistance (180°C) .Because of their designing structure, the sludge

can be peeled off easily after pigeonhole filter, so the screen are easily cleaned and have a long working time.Therefore they are designed specially for sludge dehydration.

Technical Specification

Model	Wire diameter mm		Density Root/10cm		Air permeability m3/m2h	Net weight g/m²	Strength N/cm	Used in
Model	Warp	Weft	Warp	Weft	Air permeability m3/m2h	Net weight g/m²	Strength N/cm	Used in
WNW14803	0.7	0.8	142	47-60	3900- 11052	1400	2400	Sludge, Squeeze juice
WNW16803	0.7	0.8	156	46-50	6500-8200	1400	2650	Sludge, Squeeze juice
WNW16904	0.75	0.9	156	47	14500	1800	2800	Iron and steel industry sludge dewatering Living sludge dewatering
WNW121054	0.9	1.05	120	42	11500	1650	3400	Iron and steel industry sludge dewatering
WNW22903	0.5	0.9	220	50-55	12100	1200	2000	Living sludge dewatering
WNW20703	0.5	0.7	200	70	10000	1000	1850	Living sludge dewatering Chemical sludge dewatering
GW24504	0.5	0.5	240	130-140	9900	1180	2200	Paper dry network Paper sludge dewatering
WNW08903	0.9	0.9	78	50	10000	1430	2100	Industrial sludge dewatering
WNW16704	0.7	0.7	160	90	12000	1350	2650	Building materials industries
WNW26908	0.5	0.9	26.4	69-75	5000-5500	1364	2400	Viscosity of the larger Sludge

vacuum filter press polyester sludge dewatering conveyor belt 2

Reasons to choose Sinostar?

1. High strength & density.

2. Acid-resisting & alkali-resisting.

3. Heat resistant.

4. Longer service life.

5. User-customized products.

FAQ

Q: What kind of filter fabric do you offer?

A: We maily offer filter the belt/mesh which is used for dewatering and filtration in papermaking process.

Q: What kind of equipment are your products used in?

A: Our products are mainly used in pulp washing,forming section,dryer section, press section in papermaking process.

Q: Do you have any MOQ limit?

A: Our MOQ limit is 50 m2, accept sample testing.

Q:What colors of filter belts do you provide?

A: We provide any colors you want.

Q: How can I know which kind of filter belt is best for me?

A: We will make an expert recommendation to you.
