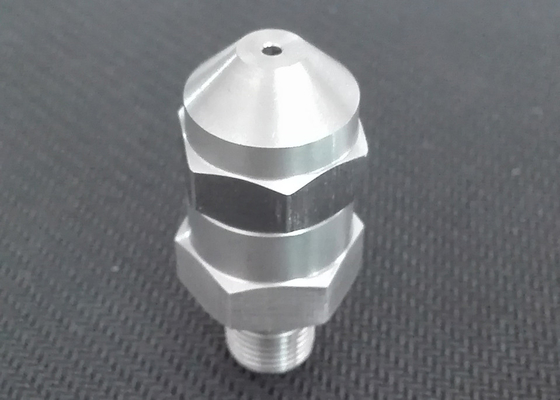

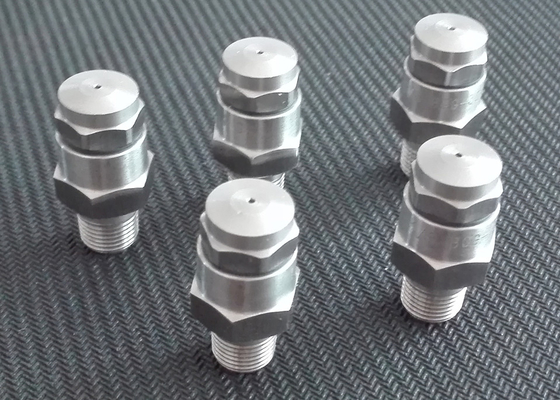

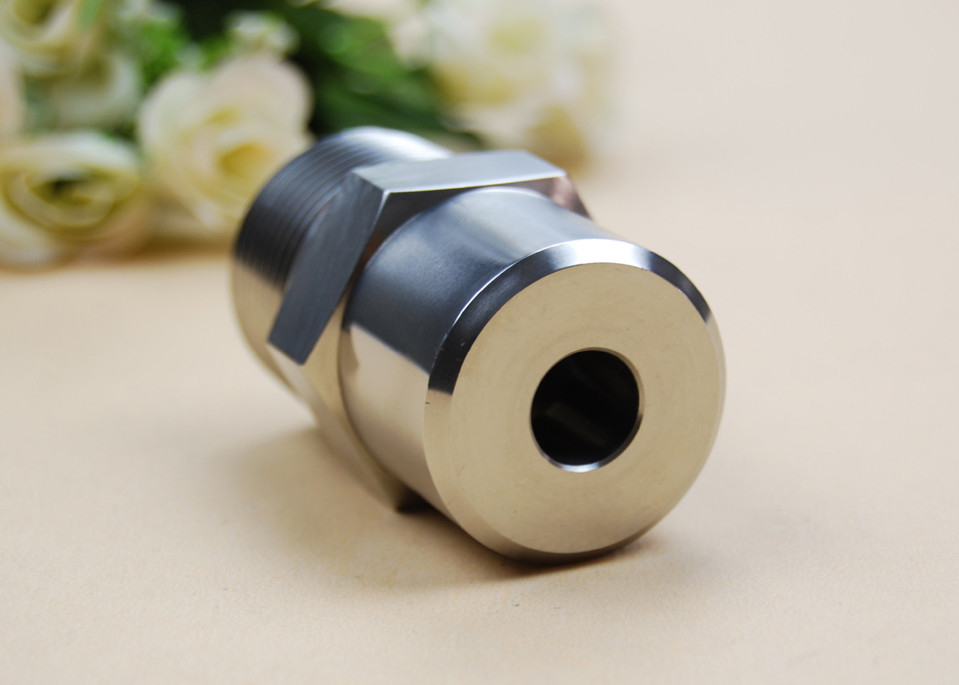

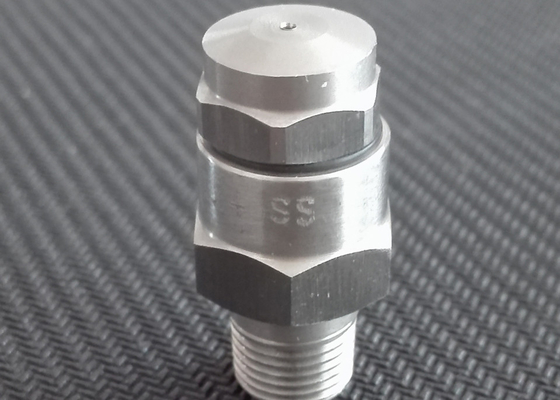

304ss industrial water cleaning solid jet full cone spray nozzle

304ss industrial water cleaning solid jet full cone spray nozzle

Features and Benefits for full cone spray nozzle

• Solid wide angle cone-shaped spray pattern with round impact area.
• Uniform distribution over a wide range of flow rates and pressures.
• Medium to large sized drops.
• Unique vane design with large flow passages provides supperior control and uniform distribution.
• Removable caps and vanes for easy inspection and cleaning on most models.
• Removable vanes has location marks for proper positioning after cleaning.
• Set screw secures vane in the nozzle to ensure it is not dislodged by vibration.
• Wall-mounted options for installation on room exterior,vessel or pipeline.
• For installations with space limitations,right-angle mounting options allow for mounting at a 90degree angle.

Common Applications

• Washing and Rinsing any conveyorised belts and fabrics.
• Quenching during heat treat process.
• Gas scrubbing,washing and cooling.
• Coating with chemicals.
• Fire prevention.
• Cooling canned foods.
• Humidification

Diamensions and Weights for Full cone spray nozzles

Standard	Spray Angle	Inlet Conn. (in)	Length (mm)	Dia (mm)	N.W. (kg)	Hex (mm)
	Cast type (Female)	1-1/4	87.5	53	0.57
		1-1/2	103	59	0.80
		2	138	76	1.7
		2-1/2	175	87	2.2
		3	196	105	2.7
		4	243	138	8.2
		5	311	172	17.3
		6	365	203	24.1
		8	470	241	41.8
	30 degree (Male)	1/8	22.2	12.7	0.01
		1/4	23	14	0.01
		3/8	30	17	0.03
		1/2	35	21	0.04
		3/4	40.5	27	0.10
		1	53	33	0.20
	Bar Stock (Female)	3/4	55.5	32	0.21
		1	70	38	0.37
	Female	1/8	31		0.03	14.3
		1/4	37.5		0.04	17.5
		3/8	46		0.07	20.6
		1/2	57		0.17	25.4
	Male	1/8	32.5		0.03	14.3
		1/4	39.5		0.04	17.5
		3/8	47		0.07	20.6
		1/2	56.5		0.17	25.4
	Male	1/8	37		0.03	14.3
		1/4	43.5		0.04	17.5
		3/8	47		0.07	20.6
		1/2	55		0.13	25.4
	Female	1/8	35.5		0.03	14.3
		1/4	41		0.04	17.5
		3/8	56		0.07	20.6
		1/2	37		0.13	25.4
	Female	3/4	54	32	0.17
		1	68.5	38	0.40
		1-1/4	86	48	0.68
		1-1/2	103	57	1.1
		2	129	70	2.0
		2-1/2	159	83	3.2
		3	186	102	5.8
	Flange	4	207	229	12.3
		5	269	254	16.4
		6	321	279	22.3
		8	423	343	48.2
		10	527	406	78.6
	Polypropylene (Female)	1-1/2	103	59.5	0.06
		2	134	71.4	0.10

(Based on largest and heaviest version of each type.)
