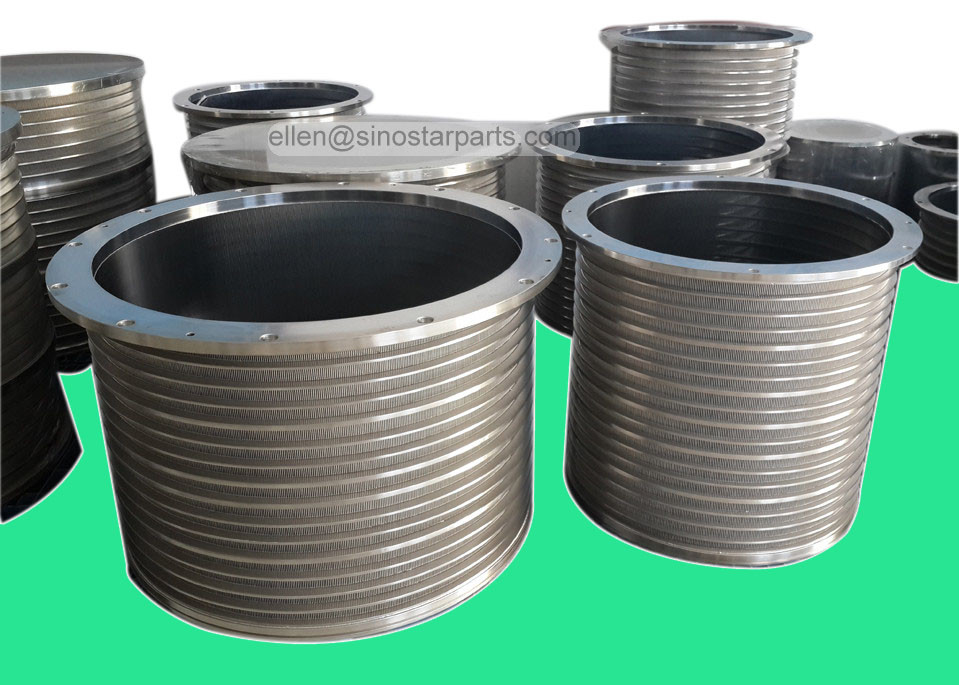

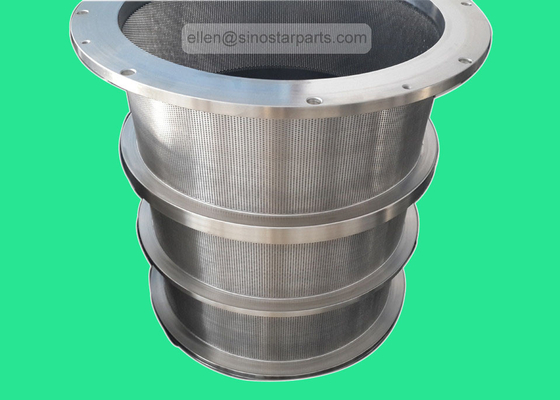

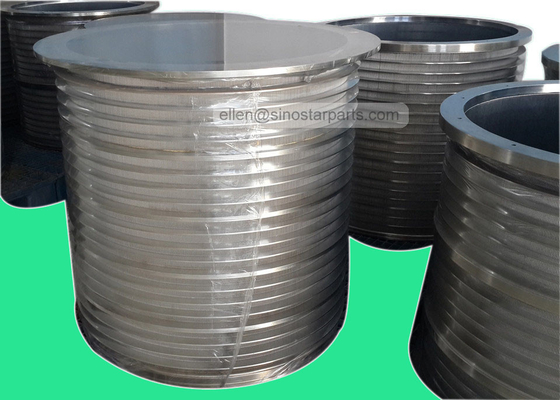

stainless steel wedge wire slotted bar screen basket for pressure screen

stainless steel wedge wire slotted bar screen basket for pressure screen

    • stainless steel wedge wire slotted bar screen basket for pressure screen
    • stainless steel wedge wire slotted bar screen basket for pressure screen
    • stainless steel wedge wire slotted bar screen basket for pressure screen
  • stainless steel wedge wire slotted bar screen basket for pressure screen

    Product Details:

    Place of Origin: Anhui pressure screen basket
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: Screen Basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: USD2800-3250 per piece
    Packaging Details: Wooden case
    Delivery Time: 20 days after your deposit.
    Payment Terms: T/T or L/C
    Supply Ability: 300 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss. Type: Wedge Wire, Slotted.
    Flow Type: Outflow Dimension: As Per The Confirmed Drawing.
    Application: Paper Making Pressure Screen.

    Stainless steel wedge wire slotted bar screen basket for pressure screen

    stainless steel wedge wire slotted bar screen basket for pressure screen

    Material stainless steel304 Type wedge wire, slotted.
    Inner diameter 755mm Height 830mm
    Screen slot 0.35mm Chrome plated 250 micron
    Weight 165kgs Packing size 940x940x940mm

    Features:

    • Increase the open area, save the energy consumption and save the operating cost.
    • Electrolytic polished and chrome coating will extend the life time of screen baskets.
    • All parts connected by welding,flanges welded before machining,machanical polishing of flanges.
    • Good in Screen bar's arrangement in order to increase the efficiency of the treatment in a certain stock pulp level and increase the speed of stock pulp through the screen basket.
    • An unique profile, it can be applied in a high consistency of screening equipment, prevent some clogging/pulp in a very wide range of operating consistency and minimize the dilution water consumption.
    • Especially for high quality of paper product, at the same time can remove the contaminants effectively, such as spot, sticky, hot melt, etc and can improve the paper machine running efficiency and quality.
    • Milling counter profile type will create turbulence flow, the screen baskets can will not plug so easily, operate in a higher consistency and higher flow-rate.

    Benefits:

    • Large open screening area
    • Highest slot width accuracy
    • No fibrous hang ups
    • Low pressure drop
    • Excellent surface quality, free of burs
    • Electro polished
    • Hard chrome coating
    • Suitable for removing dimensionally unstable impurities
    • Special rotor design avoids string formation
    • Gentle screening
    • Computerized dynamically balanced rotor.

    Advantages of pressure screen

    1. Many wing pieces, no winding, highly efficient rotary drum type rotor.



    2. Pulp consistency can reach 2.5~4%, reduce water consumption and fiber loss of production process.



    3. Heavy impurity discharge tube, ensure the security of the sieve drum operation.



    4. Advanced structure, strong and durable, easy dismounting, low energy consumption, less wastage fiber.



    5. Equipped with automatic oiling and mechanical seal water monitoring device, high degree of automation.



    6. Compact structure, small power, high output.



    Screen basket introduction:

    We are specialized in paper and pulp industry for years, mainly supply all kinds of paper and pulp machinery spare parts. For screen baskets, we are manufacturing pressure screen baskets, outflow screen baskets, inflow screen baskets,wedge wire screen baskets,etc.



    Outflow pressure screen basket is classified by the flow way of the pulp, the rotary wing spins in the basket to make the pulp flow out from the slot naturally to get good pulp with different purpose. It can be used in many links in pulp and paper line. Regarding to pressure basket, the main point is position when it works and also the result the user want to reach, designing the whole construction and shape the grade bar to ensure the operation intensity and output and quality of the pulp.



    Inflow pressure screen basket is classified by the flow way of the pulp,but the inflow pressure is divided to out rotary wing and inner rotary wing. The characteristic of out rotary wing inner flow pressure screen is that the rotary wing is in the outside of screen. When it works, the heavy impurity in the pulp can be tossed outside due to centrifugal. In the mean time fiber is nearby the screen due to it is tiny mass. With this specialty, it has the performance of seldom pulp plugging, less wear and moderate of filter.



    More related screen baskets for paper and pulp industries:

    stainless steel wedge wire slotted bar screen basket for pressure screen

    stainless steel wedge wire slotted bar screen basket for pressure screen

    stainless steel wedge wire slotted bar screen basket for pressure screen

    FAQ:



    Q.Are you a factory or trading company?

    A: We are factory and trading company.



    Q.Where is your factory located? How can I visit there?

    A: Our factory is located in Anhui province,China, about 1.5 hour by train from Shanghai.All of our customers,from home or abroad,welcome to visit us!



    Q.If the products can be customized?

    A: Yes,OEM & ODM service capability, custom designs and dimensions are acceptable.



    Q.How to pay?

    A: We accept payment terms by T/T(bank transfer),L/C, Paypal or West Union.



    Q.How long can we get the goods?

    A: Normally goods will get ready within 25 days after advance payment.
