    Product Details:

    Place of Origin: pressure screen basket Anhui vendor
    Brand Name: Sinostar
    Certification: ISO9001:2000,SGS,CE.
    Model Number: Screen Basket

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: get latest prices
    Packaging Details: Wooden case.
    Delivery Time: 20days after your payment.
    Payment Terms: T/T or L/C
    Supply Ability: 150 pcs per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304ss,316ss. Type: Wedge Wire, Slotted.
    Dimension: As Per Confirmed Drawing. Hardness: Chrome Plated, 250 Micron.
    Application: Pulping Equipments.

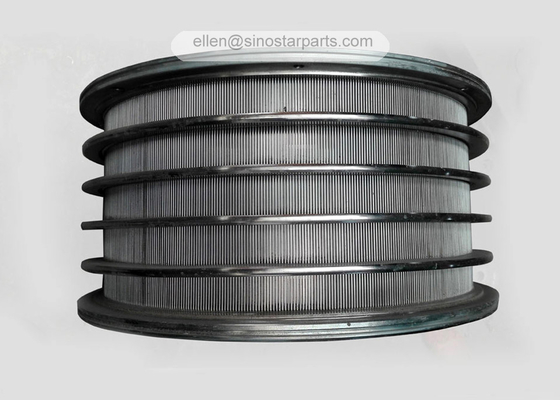

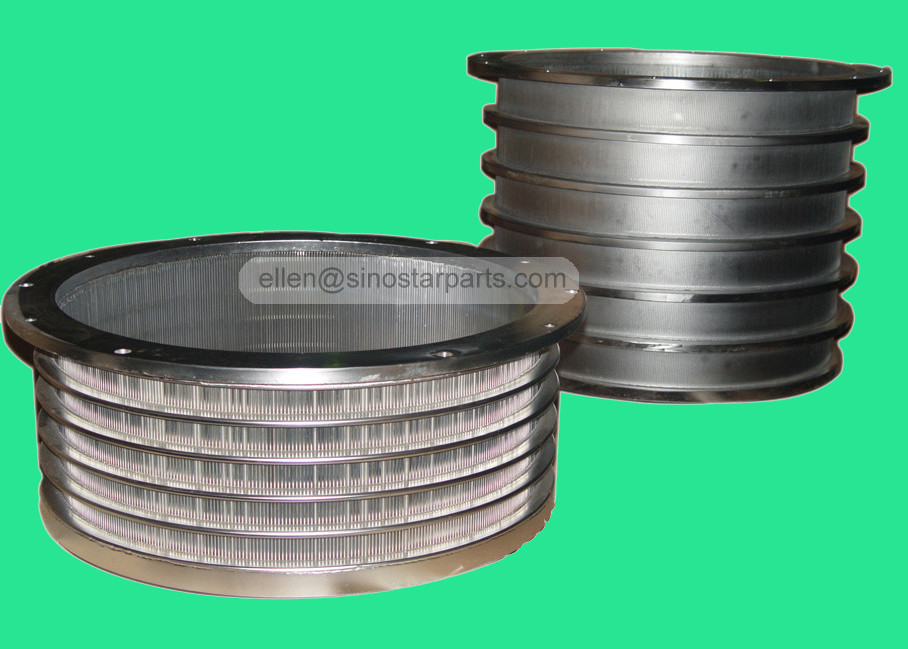

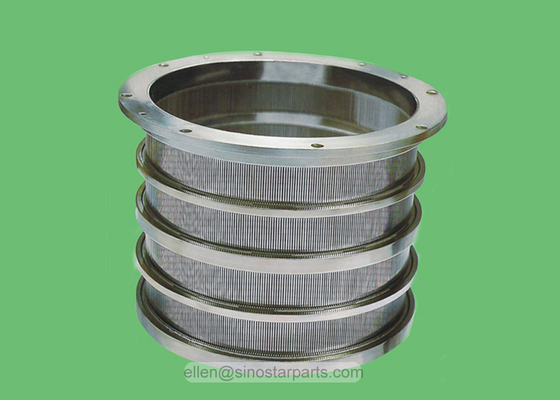

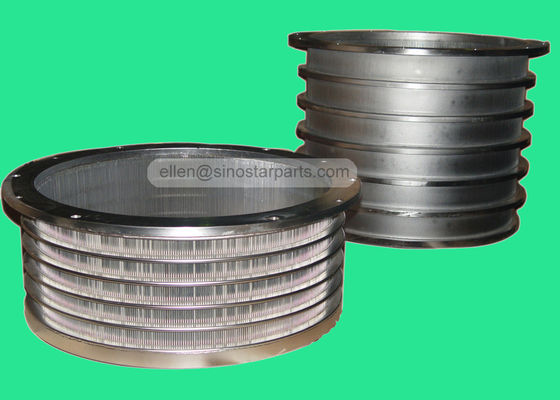

    Pulping equiptment high presure screen basket for paper making
    pulping equiptment high presure screen basket for paper making
    Material Bar:316ss, flange:304ss. Type Bar type,wedge wire slotted.
    Inner diameter 500mm Height

    340mm

    Screen slot 0.40mm Packing size 600x600x500mm
    Weight 45kgs Chrome plated 250 micron
    Main technical data:
    • Basket dia: < dia 1600mm.
    • Screen plate: 2000x6000mm.
    • Minimum slot width: 0.10mm.
    • Min. orifice diameter: dia0.8mm.
    • Wearing layer thickness: 0.2mm, 0.5mm.
    • Basket cylindrical accuracy: 0.5mm.
    • Electric-chemical polish: no fiber stringing.

    Features:

    • Skillful manufacture
    • Sophisticated technology
    • Finely processed
    • Design as per paper produced.
    • Mechanically held wires, built in the round.
    • Rugged, high mechanical strength.

    • Electric-chemical polish: no fiber string.

    • Precise slot-width tolerance.

    • High wear resistance.

    • High impact resistance.

    • Larger open area.

    • Self-supporting structure.

    • Non-plugging slot design.

    • Lower operation and maintenance cost.

    • Available for outward and inward flow screens.

    Applications:

    Be suitable for all kinds pressure screen in pulp making system and paper making system.



    Approach flow

    Recycled :OCC, Mixed waste, Waste Paper,DIP,etc.

    Mechanical pulp

    Kraft pulp



    Screen baskets introddcution:

    We are specialized in paper and pulp industry for years, mainly supply all kinds of paper and pulp machinery spare parts. For screen baskets, we are manufacturing pressure screen baskets, outflow screen baskets, inflow screen baskets,wedge wire screen baskets,etc.



    Outflow pressure screen basket is classified by the flow way of the pulp, the rotary wing spins in the basket to make the pulp flow out from the slot naturally to get good pulp with different purpose. It can be used in many links in pulp and paper line. Regarding to pressure basket, the main point is position when it works and also the result the user want to reach, designing the whole construction and shape the grade bar to ensure the operation intensity and output and quality of the pulp.



    Inflow pressure screen basket is classified by the flow way of the pulp,but the inflow pressure is divided to out rotary wing and inner rotary wing. The characteristic of out rotary wing inner flow pressure screen is that the rotary wing is in the outside of screen. When it works, the heavy impurity in the pulp can be tossed outside due to centrifugal. In the mean time fiber is nearby the screen due to it is tiny mass. With this specialty, it has the performance of seldom pulp plugging, less wear and moderate of filter.



    More screen baskets for paper and pulp machinery

    pulping equiptment high presure screen basket for paper making

    pulping equiptment high presure screen basket for paper making

    pulping equiptment high presure screen basket for paper making
