Place of Origin: | Anhui, China. |
Brand Name: | Sinostar |
Certification: | ISO9001:2000,SGS,CE. |

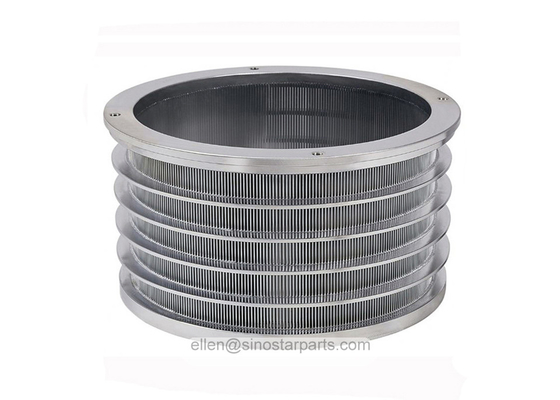

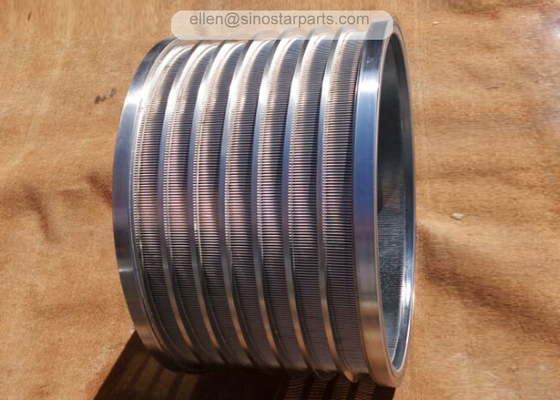

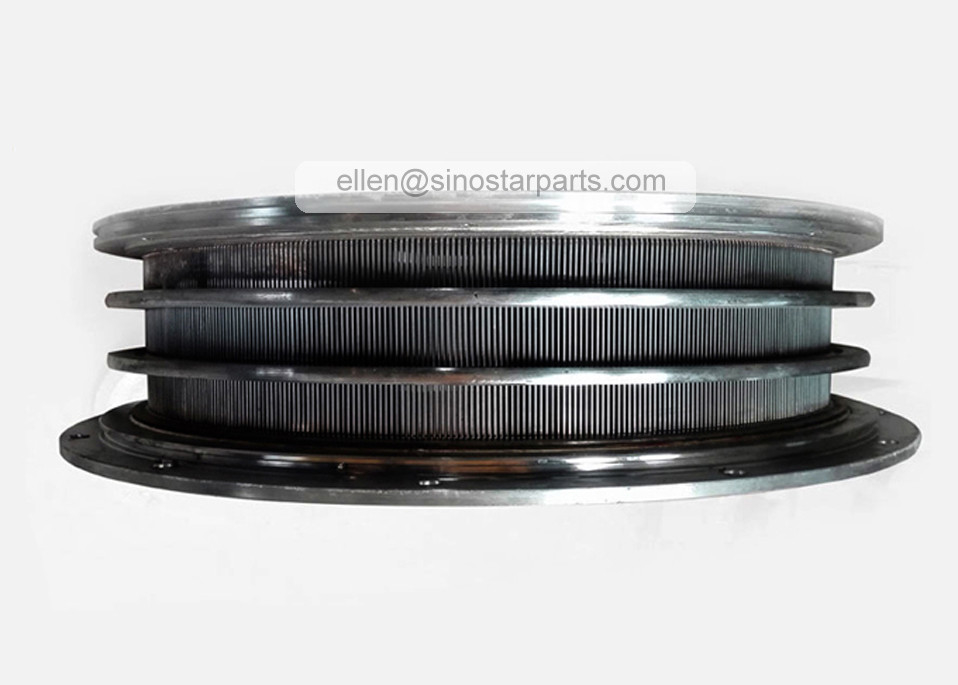

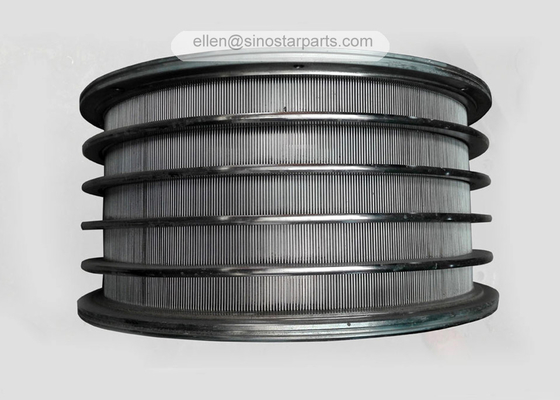

Model Number: | wedge wire screen basket |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 750-1200 piece |
Packaging Details: | Wooden case |
Delivery Time: | 15-20 worl days |
Payment Terms: | T/T or L/C, Western Union |
Supply Ability: | 200 pcs per month |
Material: | Stainless Steel 304ss, 316L. | Basket Inner Diameter: | 400mm |
---|---|---|---|
Basket Height: | 267mm | Slot Size: | 0.18mm |
Application: | Pulping Equipment |
Material
|
Stainless steel
|
Type
|
Wedge wire
|
Flow configuration
|
Outward flow basket
|
Screen slot size
|
0.18mm
|
Inside diameter
|
400mm
|
Packing size
|
500X500X450mm
|
Height
|
267mm
|
Chrome plated
|
250Micron
|
Application:
It can be coarse screen or a fine screen for all kinds of stock and different screening process.
Design Feature
It is suitable to be as fine screen for waste paper.the screen cylinder gains long life and high throughput with the bar structure.it is convenient to clean the screen slot with high pulsing frequency in the structure of multifoil or drum rotor. The multifoil rotor promotes the axial mixture for the stock to avoid stock thickening in the screening process.
The capability may be different according to different pulp variety and concentration,so the capability in the below chart is only used for choosing the model.
Outflow Processing Specification | ||
Material | SUS 316L | |
Width of slot | 0.1mm | |
Size | Min | Max |
Inside Diameter | 305mm | 1900mm |
Height of screen | 267mm | 1650mm |
Thickness of screen plate | 5mm | 10mm |
We continually evaluate and invest in new manufacturing technologies to ensure:
Our cylinders are delivered with minimal lead times and consistent quality to lower the total cost of screening for our customers.we use our knowledge and experience to select the wire that best fits your process parameters,production levels,and quality requirements.
Product range
Sinostar Industry Co.,Ltd is an industrial and trading company.
We are specialized in paper processing machinery parts for many years,our main products:
1.paper making clothing,including: polyester forming fabrics,spiral dryer fabrics,sludge dewatering belt,screen printing mesh,stainless steel wire mesh,etc.
2.Paper and pulp cleaner,including: high density cleaner, low density cleaner.
3.Other Paper-making parts,including: doctor blades,spray nozzles,pressure screen baskets,refinerr plates,etc.
Whereever you are,Sinostar products can be sent to you any part of the world quickly and cusotmer can assured in using it.
