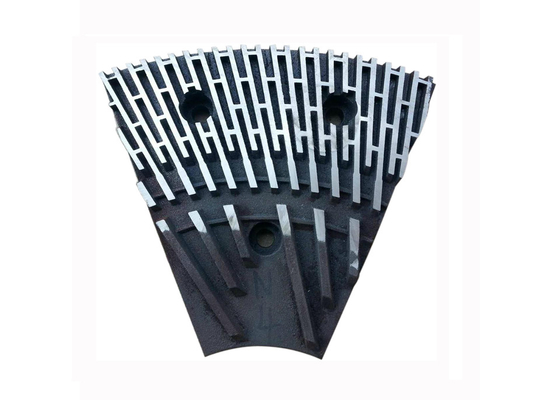

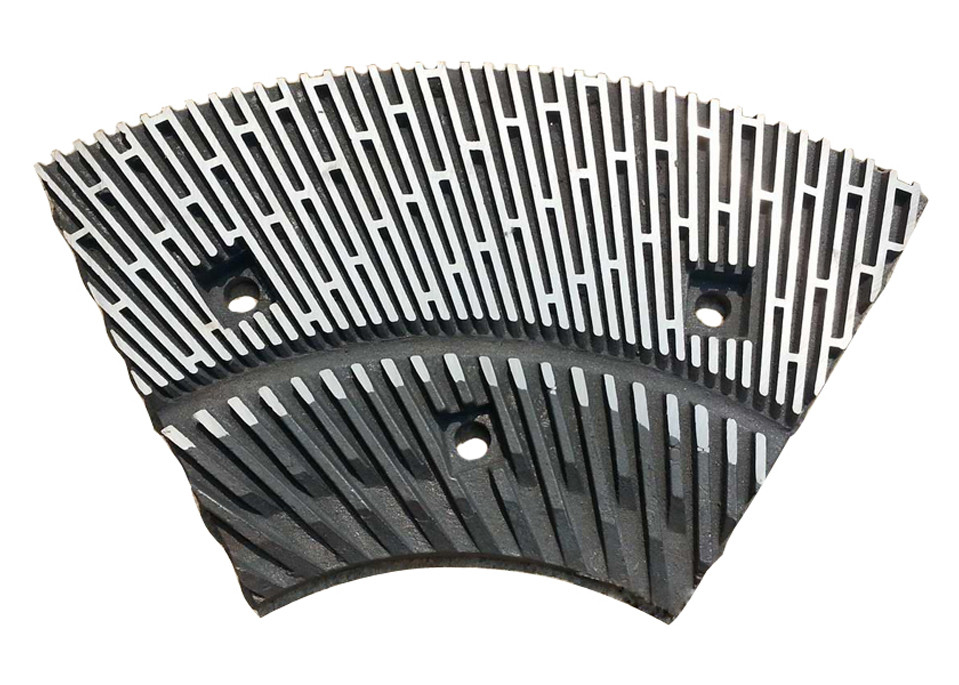

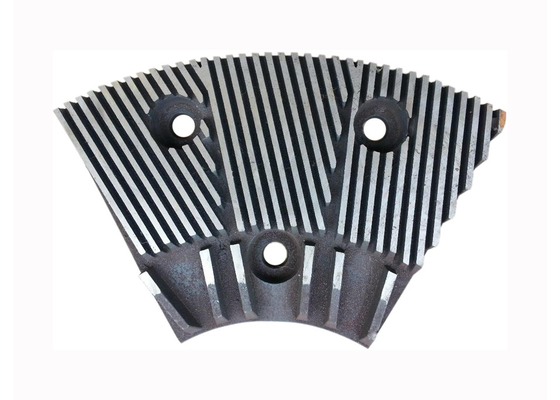

Pulp and paper industry high chrome alloy double disc refiner plate
Production
1. Pulp and Paper Industry DD Refiner Disc Plate is the core part of the beating process of pulping machine in paper and pulp industry.
2. It is used to improve the beating degree of pulp to satisfy the papermaking demand.
This Refiner plate disc is suitable for various pulp, such as wood pulp, chemimechanical pulp, chemical pulp and waste paper pulp.
Parameter sheet
| Material |
Multi-Alloy cast iron |
| Location dimension |
custom |
| Location hole design |
Open hole design |
| Tilt Angle of gear grinding |
as drawing. |
| Grinding tooth height / width |
11-12mm/4mm |
| thickness |
25-40mm |
| N.W. |
300kg |
Features & Benefits
- Increased Plate Life
- Round shape
- Coarse surface
- High hardness
- Good toughness
- Even wearing
- Energy Savings
- Lower Furnish Costs
- Higher Production Rates
- Increased Refining Capacity
Refiner plate types
We can supply refiner plates for high-consistency, low-consistency, and MDF applications with high quality standards,and we can also provide the heat-resisting & wear-resisting castings for various grinding machinery. Normally, refiner disc for pulp and paper plant.
Material selection
High chromium cast iron, nickel chromium alloy, alloy, stainless steel, tungsten carbide are available.
The multielement alloy grinding and wear resistance of high chromium cast iron grinding for good in
a dominant position.The optimized grinding tooth profile can meet the needs of specific process, to
improve fiber beating quality,paper quality andreduce power consumption.Different size, different kinds of
paper, different process and different indicators, choose different types of grinding teeth.
Service life
The alloy refiner disc commonly works for 6 months to 1 year.
And stainess steel one can work only about 2 months.
Refiner disc made of ceremics has about 2 years working life,which is the most wearable.
We can supply all kinds of refiner disc with different shape and materials according to your requirements.
Functions
Refiner plate is the core of the beating process of pulping machine components in paper and pulp industry.and it’s used the method of grinding insection mechanical action,belong to wearing parts,
its service life directly affects the pulp quality, paper quality and production efficiency.
1.An advanced cleaning equipment,
2.Key equipment in waste paper recovery
3.High technology
The refiner disc is one kind of spare part of refiners that is appied in pulping process or beating pulp.
The alloy refiner disc commonly works for 6 months to 1 year.And stainess steel one can work only about 2 months. Refiner disc made of ceremics has about 2 years working life,which is the most Wearable.
We can supply all kinds of refiner disc with different shape and materials according to the requirements of clients.
Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:
- Paper machine clothing: forming fabrics, dryer screens, pulp washing fabrics, paper making felts,sludge dewatering belts, stainless steel wire mesh,etc.
- Pulping equipments: screen baskets, screen plates, refiner plates,etc.
- Pulp cleaner: high density cleaner, low density cleaner,Medium density cleaner, ceramic cone,etc.
- Spray nozzle: flat fan nozzles,full cone nozzle, hollow cone nozzles, needle jet nozzles,low pressure misting nozzles, etc.
- Blades and knives: doctor blades, paper cutting knives, slitter knives,steel rule blades, carton box slotting knife,packaging machine blades,etc.
- Other paper machine spare parts: pulp rotors,pressure screens,suction cover box,plain bearings,etc.
If you are interested in any our products, please contact us for more details.
