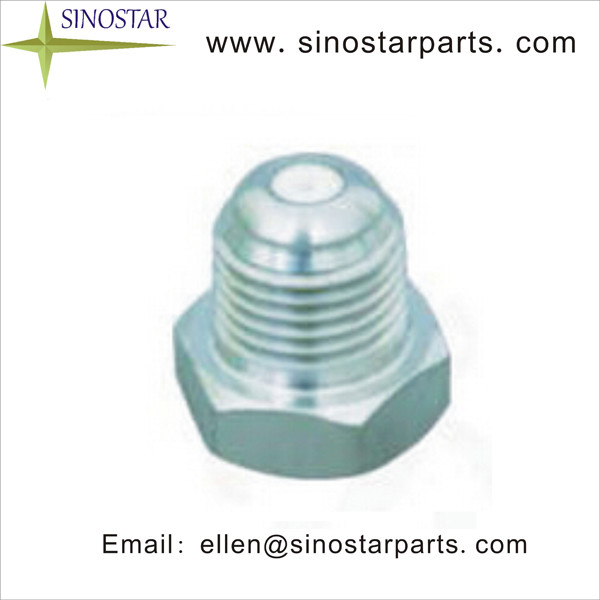

Convex Nozzle for papermaking Cleaning

Convex Nozzle for papermaking Cleaning
Convex Nozzle for papermaking Cleaning

Large Image :  Convex Nozzle for papermaking Cleaning

Product Details:
Place of Origin: Anhui paper making nozzle
Brand Name: Sinostar
Certification: ISO9001:2000
Model Number: convex nozzles
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: 2.5-5 usd/piece
Packaging Details: Export standard packing in plastic or carton box
Delivery Time: Within a week
Payment Terms: T/T or L/C
Supply Ability: 20000 pcs per month
Detailed Product Description
Material: Stainless Steel 316 Condition: New
Model: Needle Nozzle Thread Size: 1/4" BSPT
Application: Paper Machine Apart Cleaning

Product information as below:

Nozzle Type : Convex Dome Nozzle
Connection : M 1/4, BSPT , Male
Pattern : Striaght Solid Stream/ Needle Jet
Passive Orifice : 1.00 mm.
Material : Body-SUS316

Inserted-Zircinia Ceramic Oxide/ZrO2
Flow Rate : 0.85 LPM@ 3 Bars
Pressure Rating: 10-60 Bars
Operation Rating : 15-30 Bars.
Liquid Type : Fresh Water/Deep well Water
Temperature Shocking: Up to 125 Degree C
pH Bufferring : 4-9

Engineering Of Material ZrO2
Composition : 98.2 % ZrO2 + 1.8% Y2O3
Specific Gravity : More Than 6.00 g/m3.
Hardness Vicker(HV) : 11000 Mpa.
Flexurak Strength : 1150 Mpa.
Fracture Toughness : 9.0 Mpa.m0.5.
Grain Size : Less Than 0.50 Micron.
Elasticity : 200 Gpa.
Thermal Conductivity : 3 w/(m.k)
Thermal Expansion Coefficient : 9.60 @ 20-400 Degree C.
Convex Nozzle for papermaking Cleaning 0

Convex Nozzle for papermaking Cleaning 1

Convex Nozzle for papermaking Cleaning 2
