Place of Origin: | Anhui, China. |
Brand Name: | Sinostar |
Certification: | ISO9001:2000 |

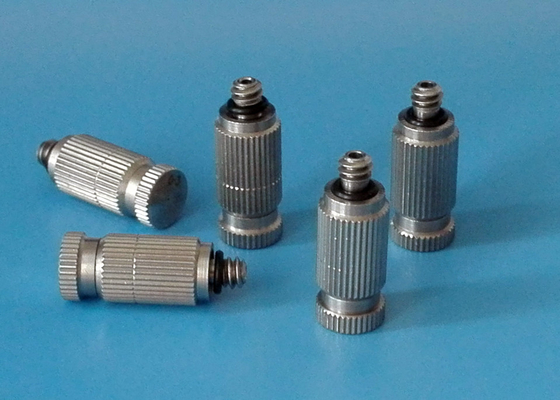

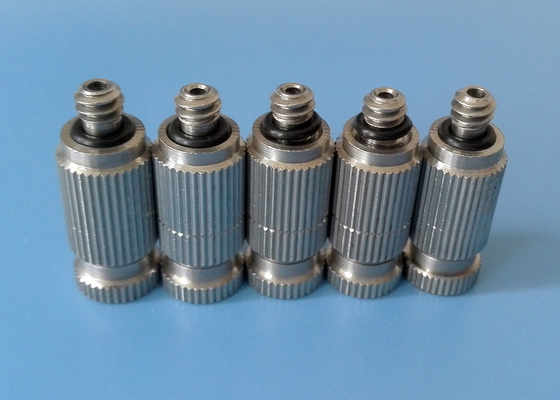

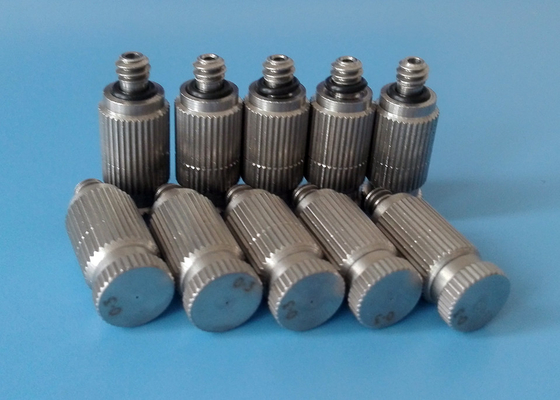

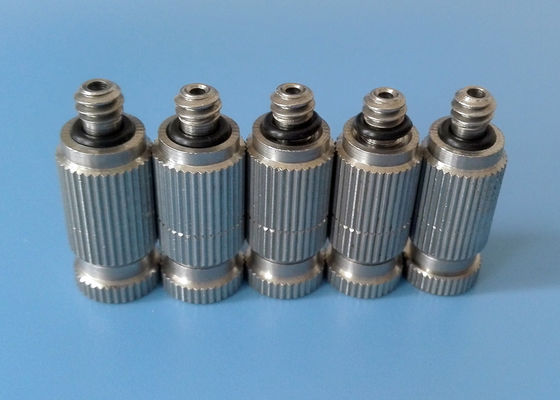

Model Number: | fog misting fine spray nozzle |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | $2.5-7 per piece |
Packaging Details: | Standard packing in plastic or carton box |
Delivery Time: | 20-25 days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100000pcs per month |
Material: | Stainless Steel, Brass | Orifice Insert: | Ceramic,stainless Steel, Ruby. |
---|---|---|---|
Orifice Diameter: | 0.10mm, 0,15mm, 0.20mm, 0.30mm,etc. | Thread Size: | 10/24, 12/24, 3/16, 1/8. |
Spray Angle: | 60-80 Degree | Application: | Cooling, Humidifying, Misting. |
Specifications
Body Material: brass, 304ss or 316ss
Spray orifice: SS, ceramic, ruby
Thread: 10/24, 12/24
Pressure: 20-70 bar
Orifice: 0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm or 0.5mm
Advantage
Applications
Misting Nozzle Technical Data
RELAB Fog Nozzle: | ||||||||||||||
Body Selection | Spray Orifice Selection | Flow rate (LPH/GPH) at different pressure values (bar/metric psi) |
Spray angle (°) |
|||||||||||
Body Conn. thread size |
Body Material |
Order No. |
Orifice Material | Orifice Diameter | 10bar/150psi | 45bar/650psi | 70bar/1000psi | 83bar/1200psi | ||||||
mm | inch | lph | gph | lph | gph | lph | gph | lph | gph | |||||
10/24unc-2A 12/24unc-2A 3/16unc-2A |
SS304 SS316 |
10 | Ruby | 0.1mm | .004" | N/A | N/A | 2.73 | 0.72 | 3.15 | 0.83 | 4.47 | 1.18 | 45-55 |
15 | 0.15mm | .006" | N/A | N/A | 3.22 | 0.85 | 3.45 | 0.91 | 4.78 | 1.26 | 50-65 | |||
20 | 0.2mm | .008" | 1.9 | 0.5 | 3.98 | 1.05 | 4.93 | 1.3 | 5.61 | 1.48 | 55-70 | |||
30 | 0.3mm | .012" | 2.58 | 0.68 | 5.34 | 1.41 | 6.59 | 1.74 | 7.35 | 1.94 | 65-75 | |||
40 | 0.4mm | .016" | 3.52 | 0.93 | 7.31 | 1.93 | 9.06 | 2.39 | 10.01 | 2.64 | 80-83 | |||
50 | 0.5mm | .020" | 4.78 | 1.26 | 9.97 | 2.63 | 12.36 | 3.26 | 12.89 | 3.4 | 80-85 |
Sinostar supply all kinds of paper and pulp machinery spare parts, our main products as following:
Our services
Why choose us?
If you are interested in any our products, please contact us for more details.
